Chamfers, Lead-Ins and O-Ring Installation Damage

A large share of "premature seal failures" are not failures at all — they are installation damage that leaked on day one. The ring was cut by a sharp edge, pinched by a tilting shaft, twisted into the groove or dragged over a cross-drilled port. All of it is preventable at the drawing stage.

Lead-in chamfers

Every edge an O-ring must pass over during assembly needs a lead-in chamfer. Without one, the corner of the bore or the nose of the rod acts as a blade: it shaves a sliver off the ring that is invisible once the joint is closed.

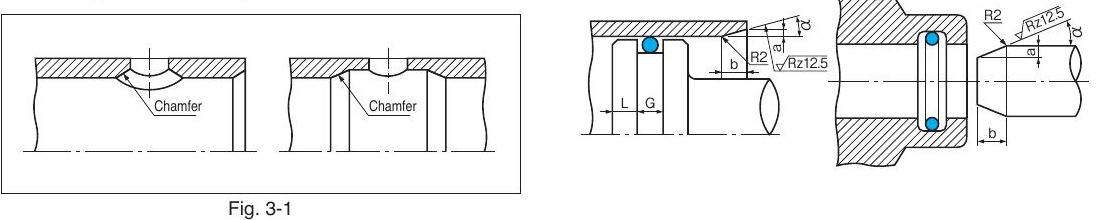

Two dimensions matter. Dimension a is the minimum radial depth of the chamfer — enough for the compressed ring to slide over. Dimension b is the axial chamfer length, which follows from the angle: a shallow 15° lead-in is gentler on the ring but needs roughly twice the axial length of a 30° lead-in.

• Angle: 15°–30° from the axis. Use 15° for fine sections and dynamic seals.
• Break the tip of the chamfer with a small radius (R ≈ 0.2 mm) — a sharp chamfer edge cuts just as well as a sharp corner.
• Chamfer surface finish: Rz 12.5 or better. A rough chamfer abrades the ring on the way past.
• Keep the distance from the chamfer to the groove, L, at least G + b, so the ring is fully clear of the lead-in before the shaft can tilt.

Threads, splines and keyways

Where a ring must pass over a thread, a circlip groove, a keyway or a spline, a chamfer is not enough. Options, in order of preference:

1. Fit a mounting sleeve or cone. A thin-wall assembly bullet over the threaded nose is the reliable answer and can be reused indefinitely.
2. Wrap the thread in thin polyester tape and pass the ring over the wrap, then remove the tape. Effective for field service.
3. Redesign the sequence so the ring is fitted from the far side and never crosses the feature.

Assembly rules

• Lubricate. Wet the ring and both mating surfaces with the system fluid, or a compatible grease. Dry assembly is the commonest cause of installation nicks.
• Do not twist. A ring rolled into the groove keeps a permanent helical twist that becomes a spiral failure. Work it in evenly around the circumference.
• Do not reuse rings. A used ring has taken set and may carry invisible damage. The ring is the cheapest part in the assembly.
• Keep the shaft square. A tilted rod pinches the ring between the nose and the bore. That is what the L ≥ G + b rule protects against.
• Do not flush with solvent or petrol while rings are still installed — most elastomers swell severely in cleaning solvents.
• Check for slack. Even at standard groove and ring dimensions, an unfavourable stack of tolerances can leave the ring bulging on the groove's inside diameter. Seat it evenly so no slack is trapped and pinched as the joint closes.

What installation damage looks like afterwards

Special cases

Vacuum flanges

Vacuum sealing is gas sealing, so leakage through microscopic surface gaps dominates. Hold the sealing faces to a finer finish than you would for hydraulic duty, design for squeeze at the upper end of the static range, and choose a compound with low gas permeation and low outgassing — additives and plasticisers migrate under vacuum.

Pneumatic dynamic duty

Air carries no lubricant, so the seal has to bring its own.

• Use a standard P-series ring in a general-purpose 70 Shore A nitrile unless the temperature or medium says otherwise.
• Provide continuous lubrication, or pack the assembly generously with a compatible grease (a No. 2 consistency lithium-soap grease is the usual choice) and design in a grease reservoir.
• Where two rings are used on a rod, space them at least 2 × W apart and fill the gap between them — and between the ring and the wiper — with grease.
• Finish the mating surface to Ra 0.4 µm and hold the groove dimensions to the standard table.
• If friction is the design driver, a purpose-designed pneumatic profile will beat an O-ring; ask us before compromising the groove dimensions.
