MYP Packings
Sakagami MYP pneumatic packings are ideal for small diameter pistons and interchangeable with JIS B2401 P-line O-rings. Featuring a precision slit lip design, MYP seals enhance sealing stability, prevent inverted assembly, and maintain optimal friction properties. Perfect for compact pneumatic systems requiring reliable, low-friction sealing

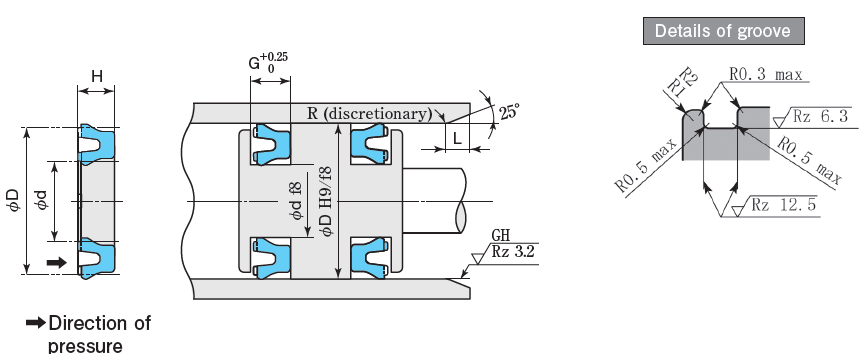

Dimension table
| Packings & Groove dimensions（Unit：mm) | Part No. | |||||
|---|---|---|---|---|---|---|
| D | d | H | G | L | Standard （RN 722） |
High temperature-resistant （RF 704） |
| 6 | 3 | 2.2 | 2.5 | 2 | MYP-6 | MYP-6F |
| 8 | 5 | 2.2 | 2.5 | 2 | MYP-8 | MYP-8F |
| 10 | 7 | 2.2 | 2.5 | 2 | MYP-10 | MYP-10F |
| 12 | 9 | 2.2 | 2.5 | 2 | MYP-12 | MYP-12F |
| 15 | 11 | 2.8 | 3.2 | 2.5 | MYP-15 | MYP-15F |
| 16 | 12 | 2.8 | 3.2 | 2.5 | MYP-16 | MYP-16F |
| 20 | 16 | 2.8 | 3.2 | 2.5 | MYP-20-1 | MYP-20F |
| 25 | 21 | 2.8 | 3.2 | 2.5 | MYP-25-3 | |
